Loudspeaker Setup Virtualization
The Virtual Setup
Virtual loudspeaker setups are helpful when working on channel-based concepts without having the actual setup available or when creating downmixes for channel-based compositions. One way to do this is to place a binaural listening position inside an arrangement of virtual sound sources, each representing a loudspeaker.

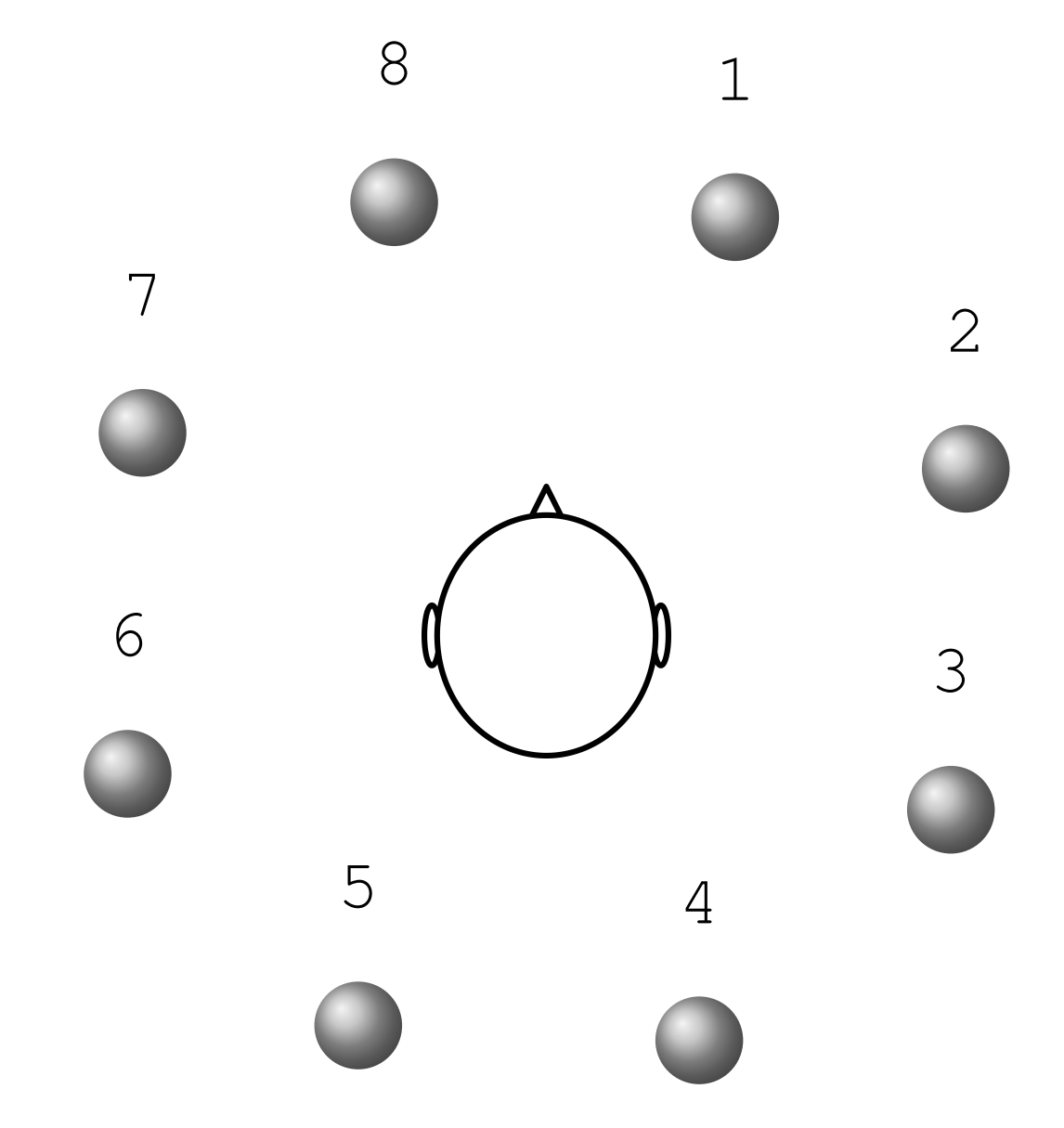

Binauralization of a virtual 8-channel loudspeaker setup.
Routing and Rendering
When running, for example, a channel-based spatialisation with 8 loudspeakers, all loudspeaker signals are routed from the audio coding environment to the renderer (DAW).

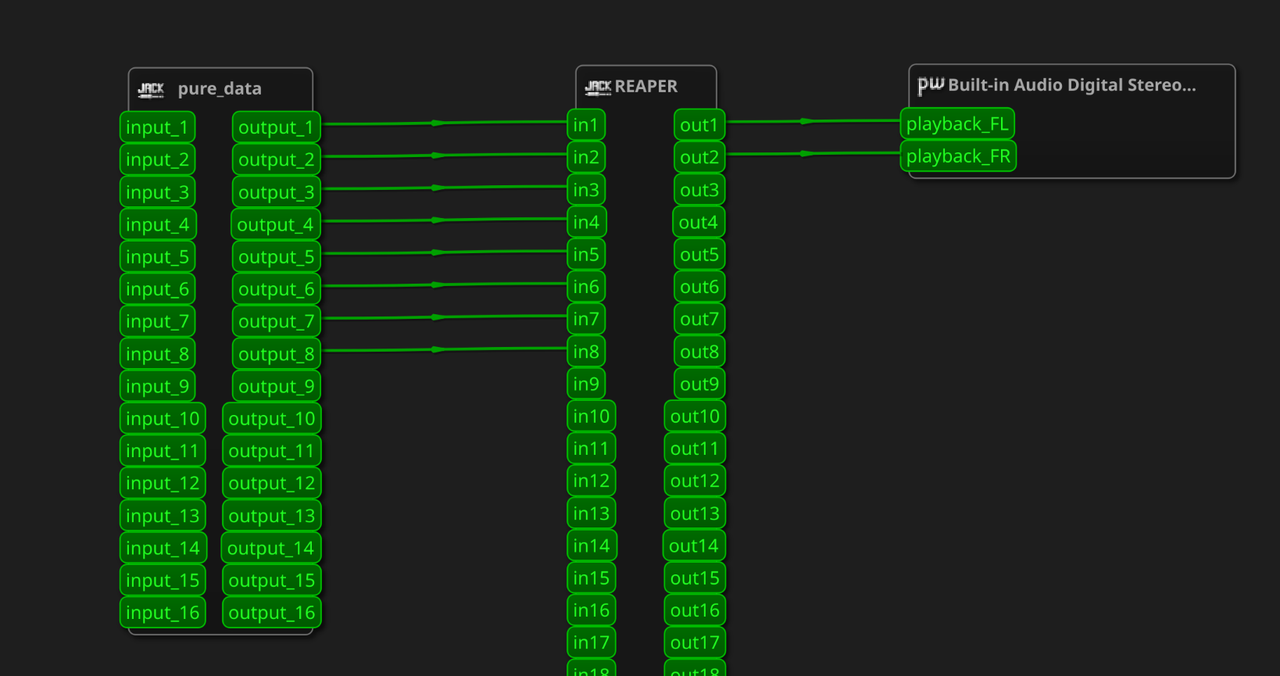

Routing 8 channels to the DAW.
A simple chain of multi encoder and binaural decoder turns the 8-channel signal into a headphone-ready mix:

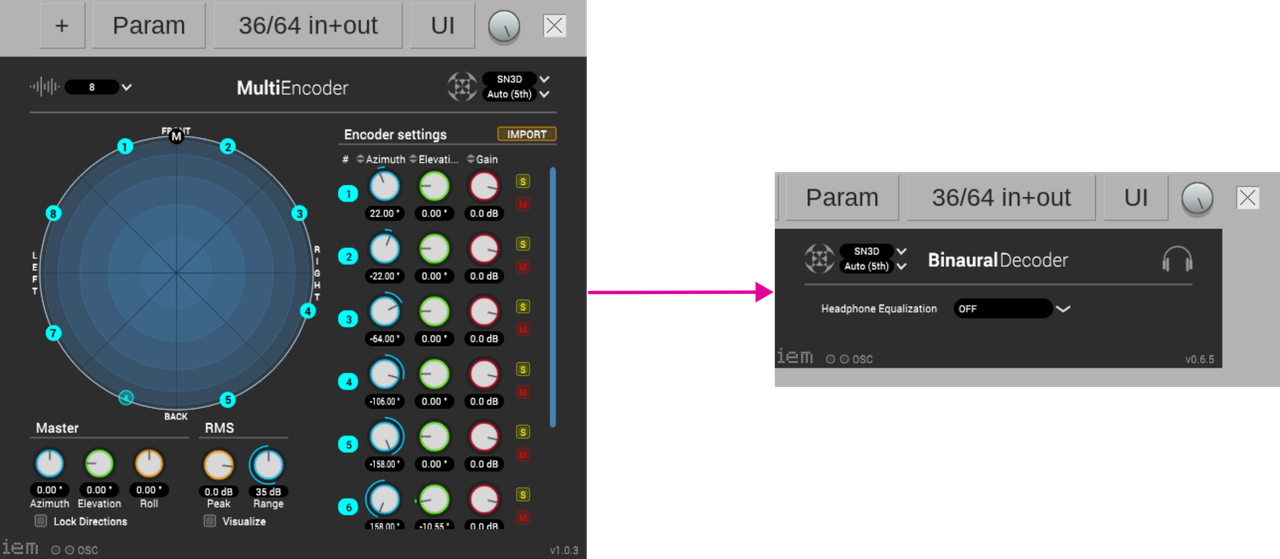

VST routing for the virtual 8 channel setup.
